Pre-opened Bag Making Machine

Pre-opened Bag On Roll Making Machine

OEM Support
China Factory
Best Price
Quickest Delivery
Product description: We are the leading and professional China Pre-opened Bag Making Machine,Pre-opened Bag Converting Machine,Pre-opened Bag On Roll Making Machine,Pre open Bag Making Machine manufacturer.
INQUIRY

Performance And Characterlstics:
This pre-opened bag making machine/pre-opened bag on-a-roll making machine is our newest design machine,it has much functions as photoelectric automatic tracking microcomputer length setting,highlimit stopping,automatic counting,automatic alarm on reaching the set value,high compensation accuracy with such characteristics as neat bags,little error and high automatic of whole machine,so it is a kind of ideal equipment for producing pre-open bag to match the line of autobag,titan, sharp packing machine.

Model	PRE-600
Max.width of Bag-making	550mm
Max.length of Bag-making	1000mm
Max diameter of unwinding(can be special design)	600mm
Max diameter of rewinding(can be special design)	400mm
Max.speed of Bag-making	30-150 pcs/min
Paper core of unwinding(can be special design)	3inch (76mm)
Paper core of rewinding(can be special design)	3inch (76mm)
Thickness of film(single layer)	0.008-0.15mm
Electric Power	12 kw
Overall Dimensions	580012001600mm
Weight	2000kgs

Technical implementation elements:

The purpose of the pre-opened bag making machine is to solve the above problems and shortcomings, to provide a single-sided pre-opened bag suitable for automatic feeding, automatic heat sealing and automatic cutting, which can be used with the machine, so as to save labor costs and improve work efficiency.

The purpose of the utility model is achieved through the following technical solutions: a single-sided pre-opened bag, including several plastic bags, one side zigzag point connection between the plastic bag and the plastic bag, and the other side between the plastic bag and the plastic bag. With opening.

Further, the single-sided pre-opened bag on-a-roll includes several plastic bags, one side between the plastic bags and the plastic bags is zigzag point connection, the other side is integrally connected with the upper and lower ends of the plastic bag and the plastic bag, and the middle is open. The one-piece connection length is 5mm.

Because the utility model adopts the above-mentioned packaging structure, the assembly line directly puts the articles into the plastic bag, and the machine automatically recognizes and completes the feeding action, performs heat sealing and cuts off the connection with the previous plastic bag. It can save post operators, and complete the packaging process by mechanical automation, improve work efficiency, and realize large-scale fully automated operations.

New development on SNDA Pre-opened Bag Making Machine

1. Except the narmal pre-opened bag on-a-roll making machine,we also developed and improved several type of such bag machine with different type bag finished.

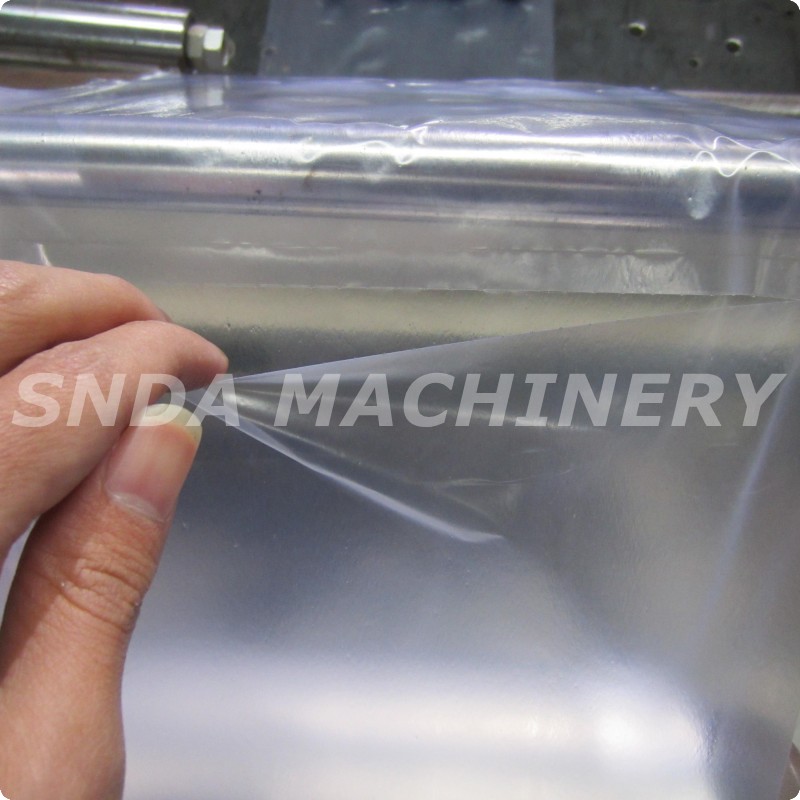

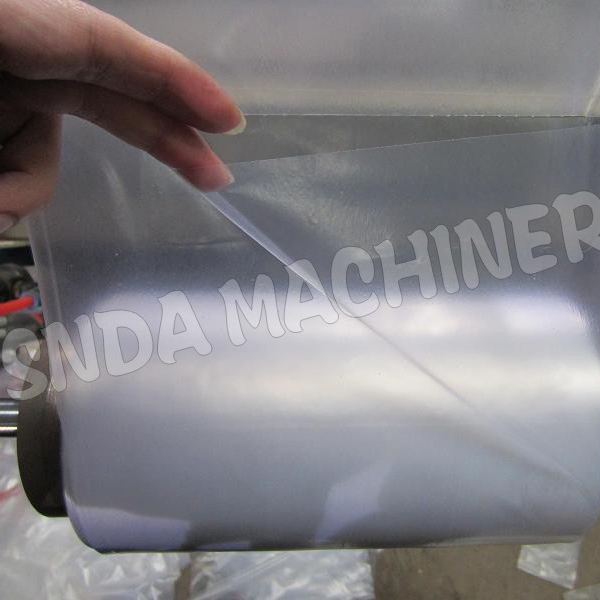

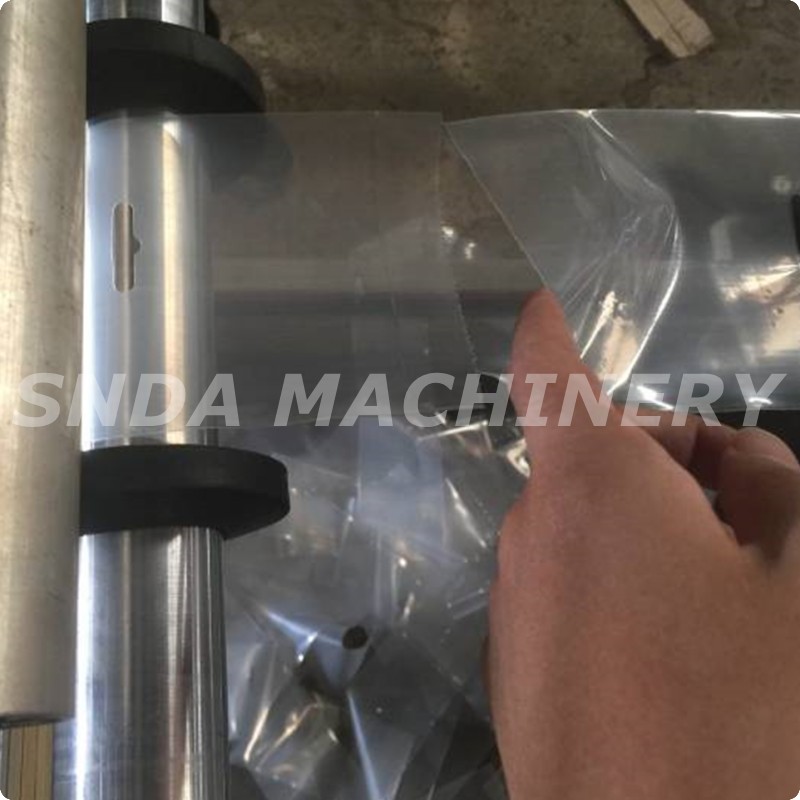

Normal bag picture as below:

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Pre-open Bag On Roll Making Machine with 1 Sealing 2 Perforating(one is side easy open line)

The bag is our another new design on our pre-open bag making machine,it has 1 sealing line,2 perforating line(one is side easy open line).

About the two perforating lines,one is on bag bottom and another on bag side,the bottom one is for normal pre-open inline when we do bag making,another is pre-cut perforating line for bag side easy open when we finished packing item inside the bag.

----------------------------------------------------------------------------------------------------------------------------------------------------------

3. Pre-open Bag On Roll Making Machine with 1 Sealing 2 Perforating(one is top easy open line)

The bag is our another new design on our pre-open bag making machine,it has 1 sealing line,2 perforating line(one is top easy open line).

About the two perforating lines,they are on bag top and bottom,one is for normal pre-open inline on bag bottom when we do bag making,another is pre-cut perforating line on bag top for bag easy open when we finished packing item inside the bag.Also this pre-cut perforating line for bag easy open have two design,one is full bag width perforating,another is 60%-80% or more or less open.This can be adjusted by switching the perforating blade width(Double perforating blade we can offer in different width).

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Pre-open Bag On Roll Making Machine with 2 Sealing 2 Perforating(one is side easy open line)

The bag is our another new design on our pre-open bag making machine,it has 2 sealing line,2 perforating line.

About the two sealing line,why customer choose two sealing lines,because they make mexico-hat punching/euro punching/banana punching/handle punching on the bag too,then after the bag finished item packing,it can be hung easily.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

5. Pre-open Bag On Roll Making Machine with 2 Sealing 2 Perforating(one is top easy open line)

The bag is our another new design on our pre-open bag making machine,it has 2 sealing line,2 perforating line(one is top easy open line).

New application of our pre-opened bag on roll in supermarket.

The new application of our current pre-opened bag on roll has come true in the supermarket.As we know,usually in the supermarket,the bag what we used is on roll but actually they are only flat end bag on roll,the bag top is closed when it was made by the bag making machine.

But customer sometimes found that the bag is not very easy to open the bag top when they need to use it to pack the fruit or vegetable,so we have a new idea to use such pre-opened bag to replace the normal bag,because the pre-opened bag is one side mouth open already.It’s very easy to be tear off by customer one by one and directly fill the fruit into the bag without opening the bag top by manual.

Also the bag thickness can be similar as normal HDPE bag,so this new type bag which made by our pre-opened bag making machine is a new choice for the supermarket,fruit and vegetable shop.

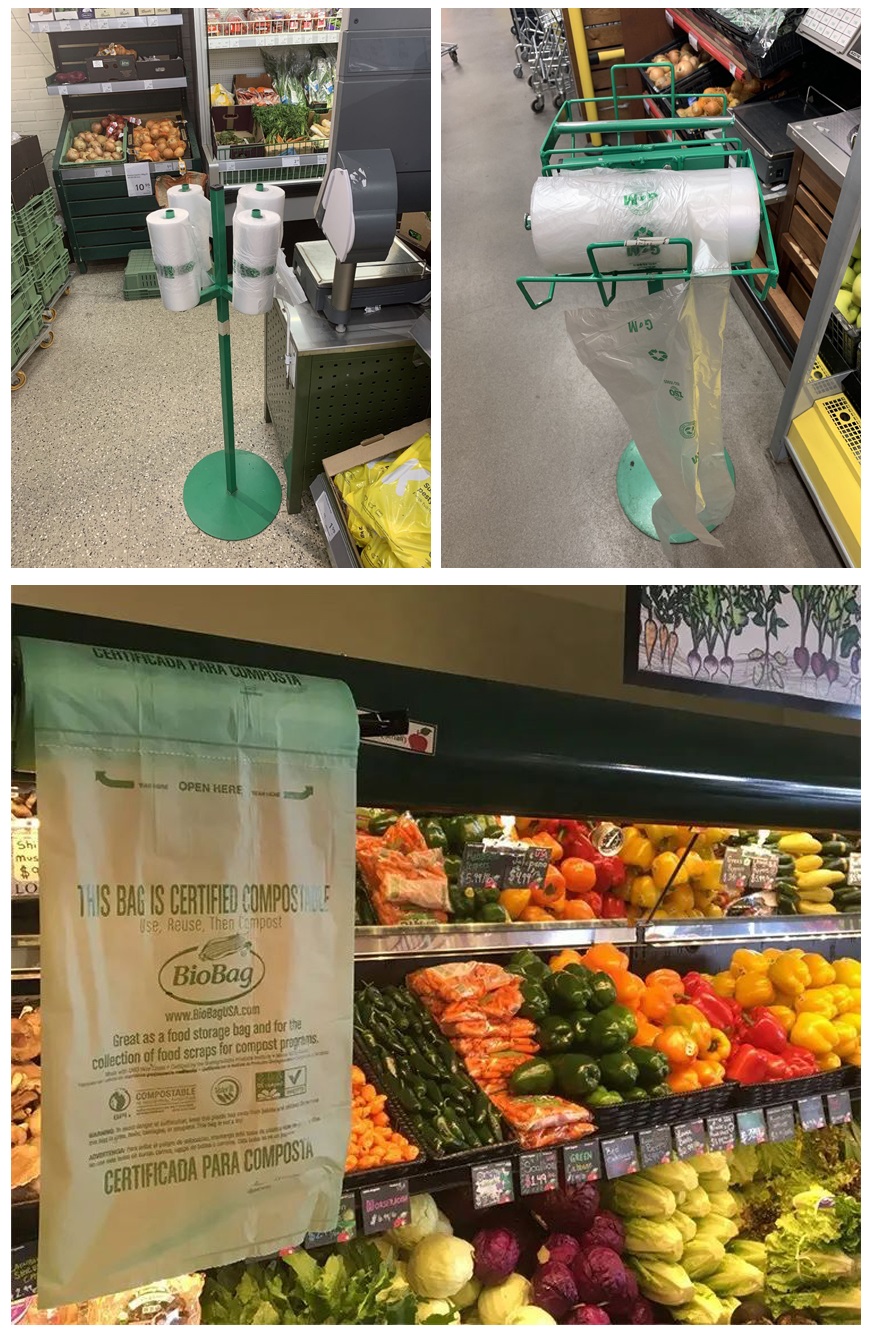

The case picture as below:
