Fanfold Paper Folding Machine

High Speed Fanfold Kraft Paper Folding Machine

OEM Support
China Factory
Best Price
Quickest Delivery
Product description: We are China machine manufacturer of Fanfold Kraft Paper Perforated Cutting and Folding Machine,fanfold kraft paper making machine,fanfold kraft paper folding machine,paperez paper perforating machine
INQUIRY

Application

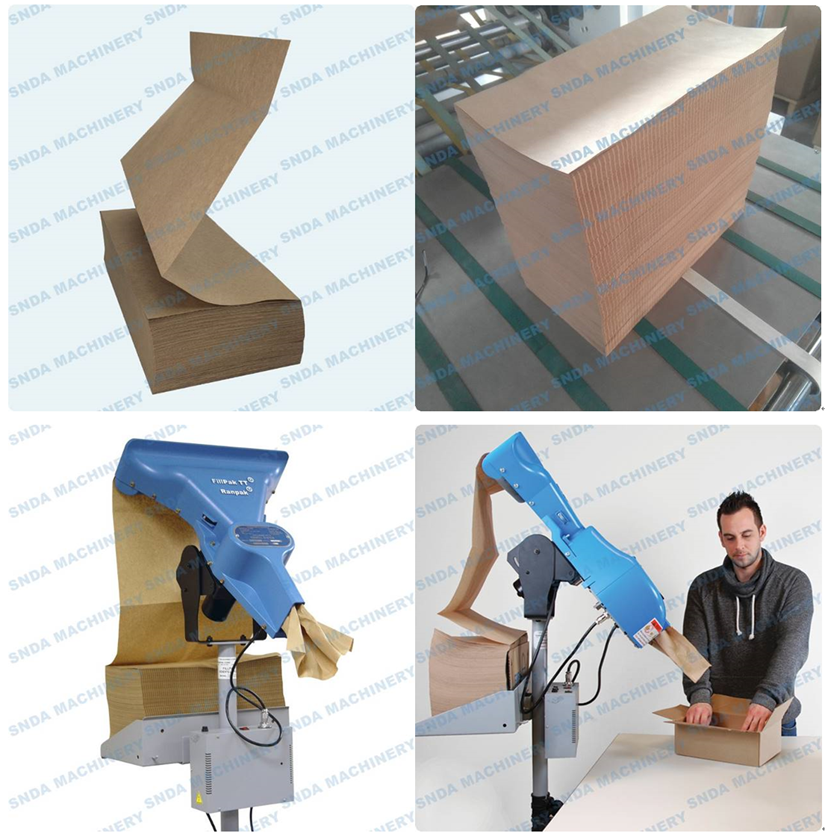

This Fanfold Kraft Paper Perforated Cutting and Folding Machine is our newest design for making the kraft paper roll for paperEZ,Ranpak company.The kraft paper roll get perforated cutting and folding by our machine automatically and stack to a pile to be collected.

Machine model	SD-PF500B/PF800B
Max material width	470mm/780mm
Paper thickness	40-150gsm
Machine working speed	200m/min(model 800 150m/min)
Perforation and Folding length	8-15inch（Standard 11inch,need to change module）
Unwinding diameter	0-1200mm
Stacking system	By conveyor
Unwinding type	Automatic lifting system
Unwinding shaft	3” inflatable air shaft
Inverter and PLC	Local brand
Touch screen	Weinview brand
Motor	Local brand
Machine size	350012001600mm(LxWxH)/350015001600mm
Machine power	3.5kw/5 KW
Machine weight	2000KG/2500KG
Power supply	380V 3 Phase 50hz
