Description

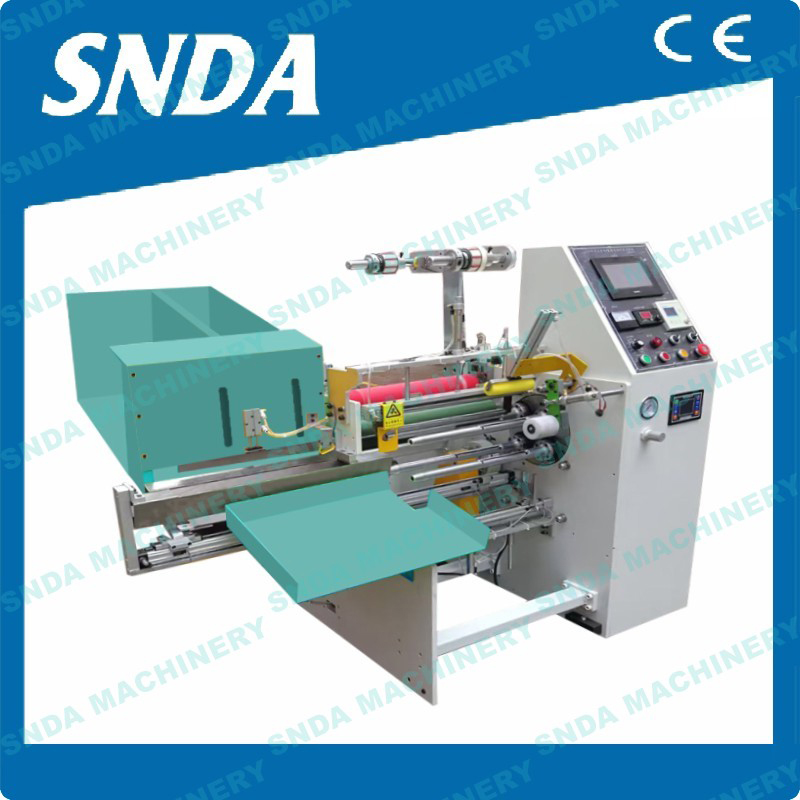

· This kraft masking paper making machine/pre-taped masking paper rewinding machine is suitable for making kraft paper,PE,HDPE pre-taped masking film which is widely used for protecting places that no need painting.It is widely used in large machinery, ships, car cars, containers,painting, painting trademarks, logo protection.
· This machine adopts frequency conversion speed regulation and full integrated circuit control. Complete functions, good repeatability and stable speed. Work reliably. No misoperation.The tension of rewinding and unwinding is automatically controlled. Two-stage electronic length counting, accurate length calculation.

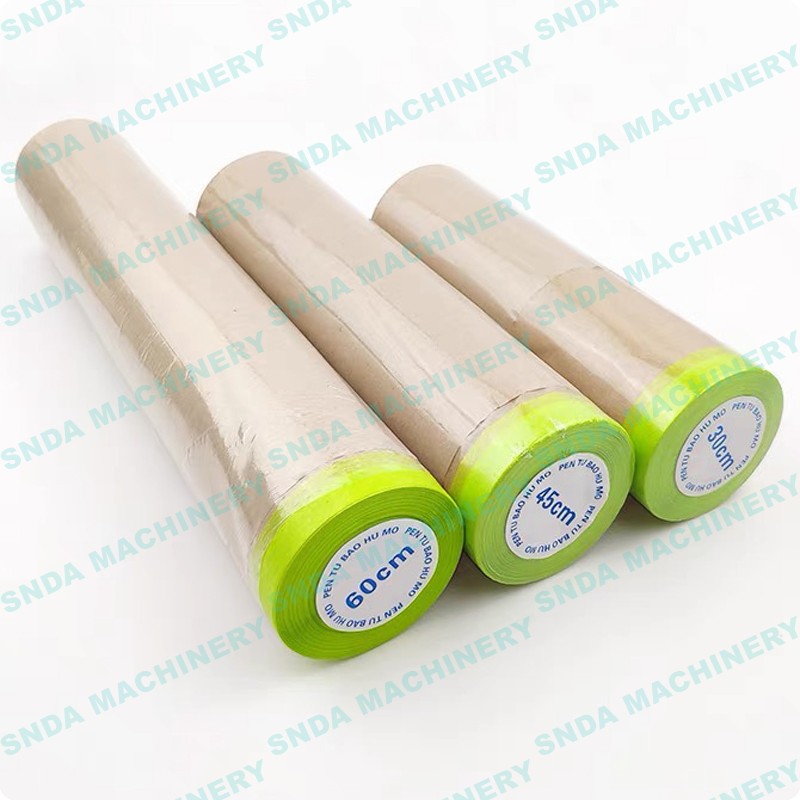

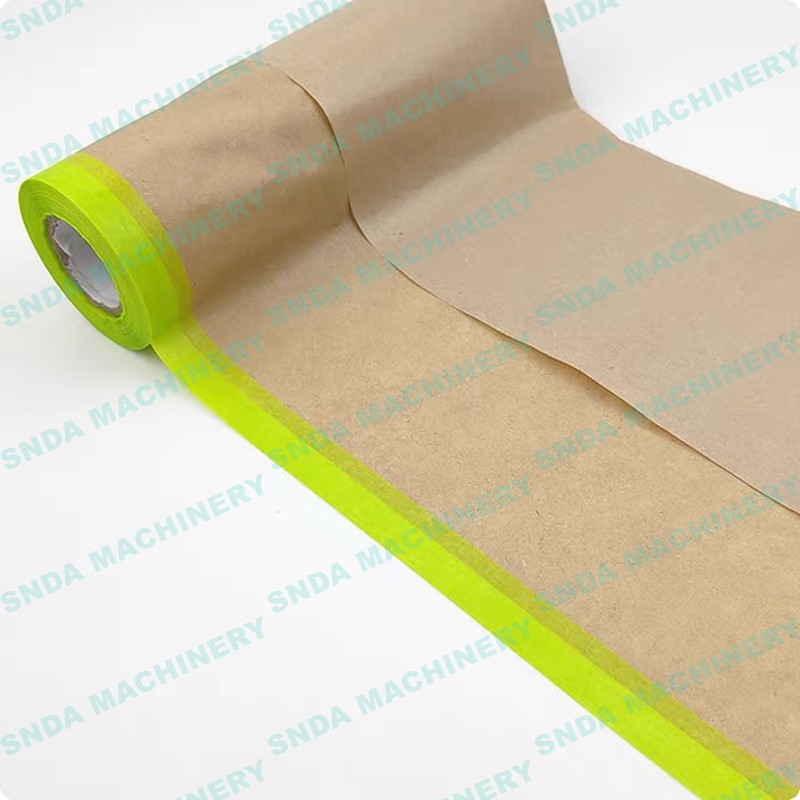

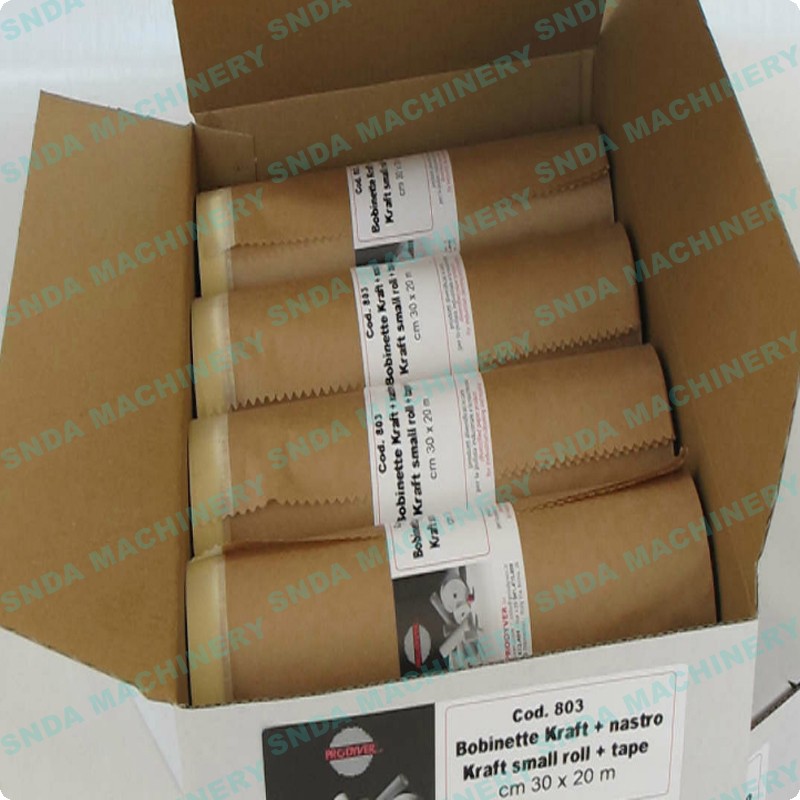

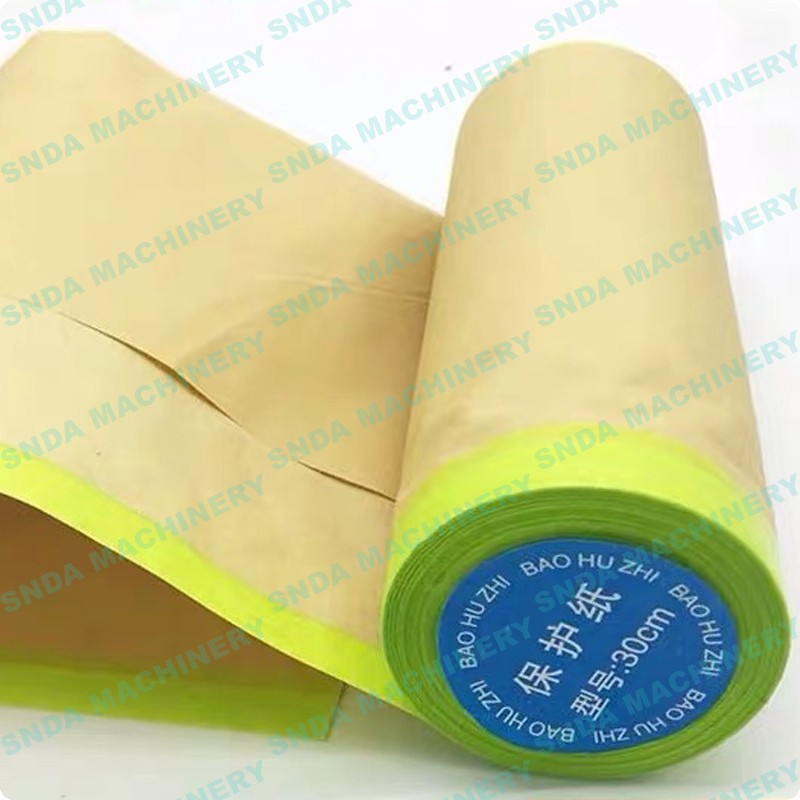

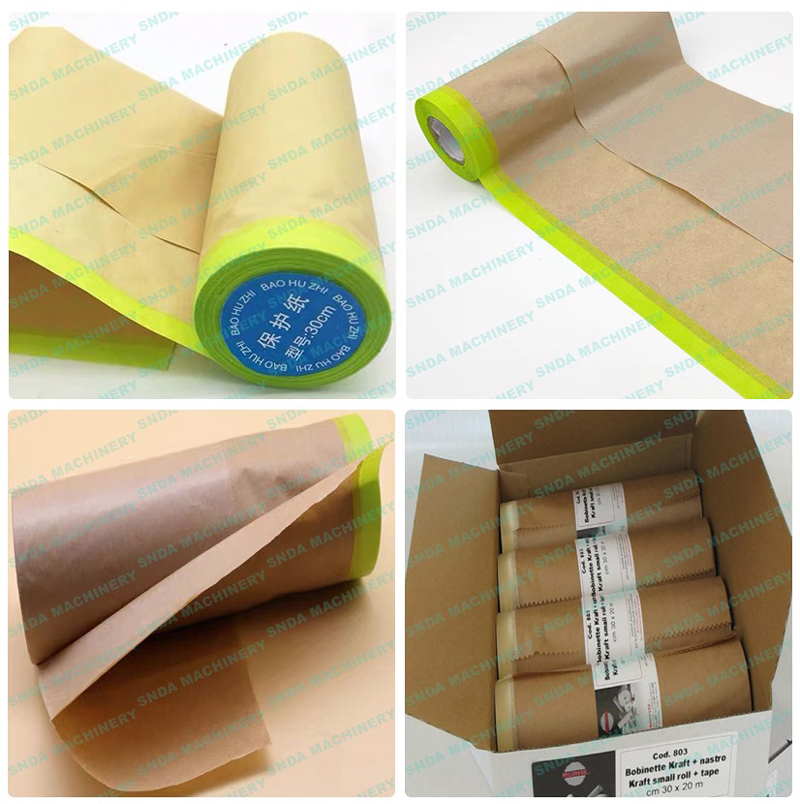

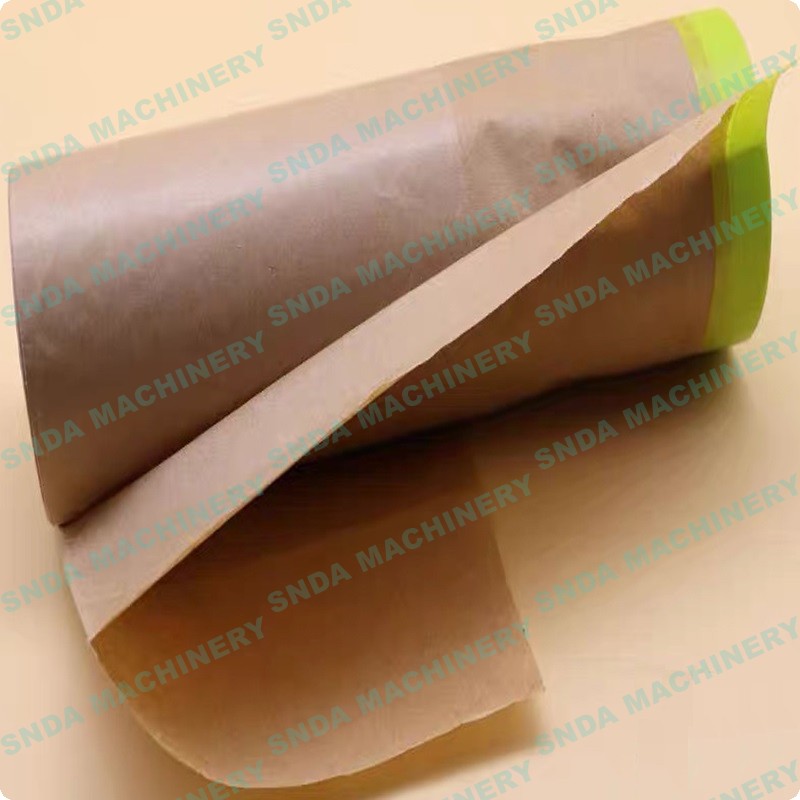

Application of masking paper/film
* MATERIAL: Kraft paper,brown paper,the film is made of environmental protection polyethylene material, dustproof, waterproof, not easy to scratch, and has a high dustproof effect.
* ROLL DESIGN: this masking material adopts the roll design, which can easily and quickly unfold the paper/film and cover all kinds of small appliances. And you can cut different lengths for different items.
* WIDE APPLICATION: it is perfect for dustproof cover for cover that can protect household appliances and furniture from dust and pigment when decorating or painting a house. It can also be used as automobile paint film and picnic mat.
Main Technical Variables
Description |
Model SD-ZB260 |
Max. width of mother roll |
450mm |
Max.diameter of mother roll |
1000mm |
Max. width of final roll |
240mm |
Max.diameter of finished roll |
100mm |
Paper Core diameter(Rewind and unwind) |
1inch and 3inch |
Taper width and core diameter |
16mm/3 inch |
Cutting Speed |
100m/min |
Total power |
2.5kw |
Gross weight |
800kg |
Overall dimensions |
2000x1800x1400mm |
