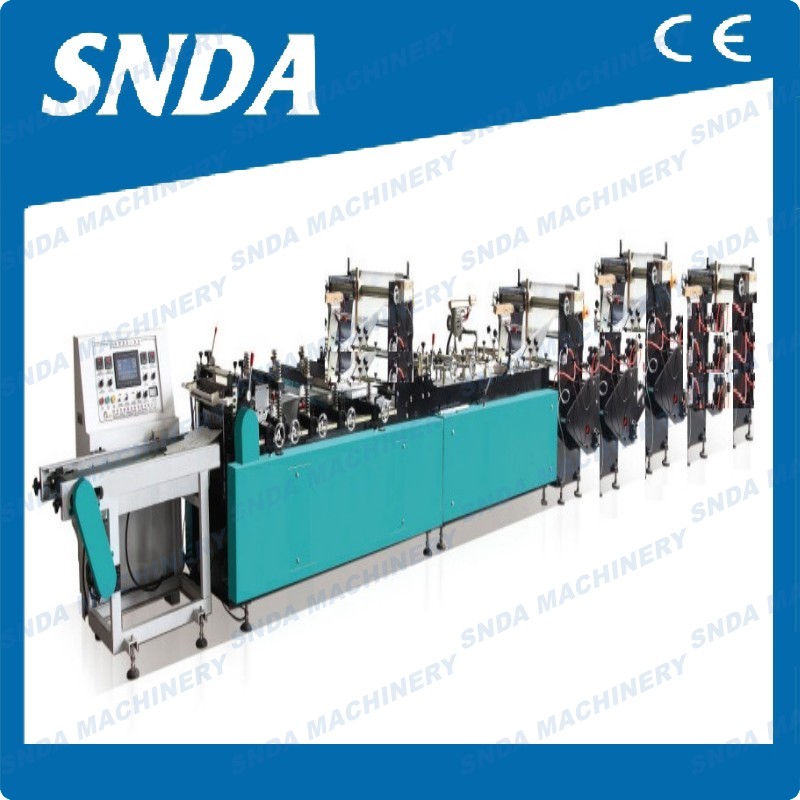

Honeycomb Paper Mailer Bag Making Machine

Brief Introduction:

1. This Honeycomb Paper Mailer Bag Making Machine is special designed for bag-making after kraft paper and on-line pressed bubble paper or pressed honeycomb paper rolls which are bonded by partial glue.

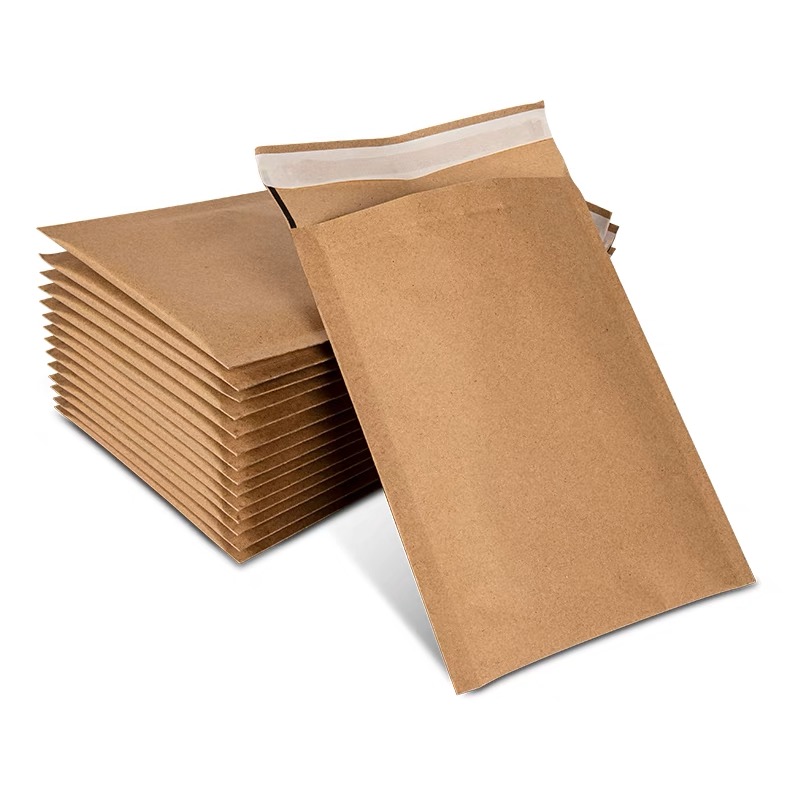

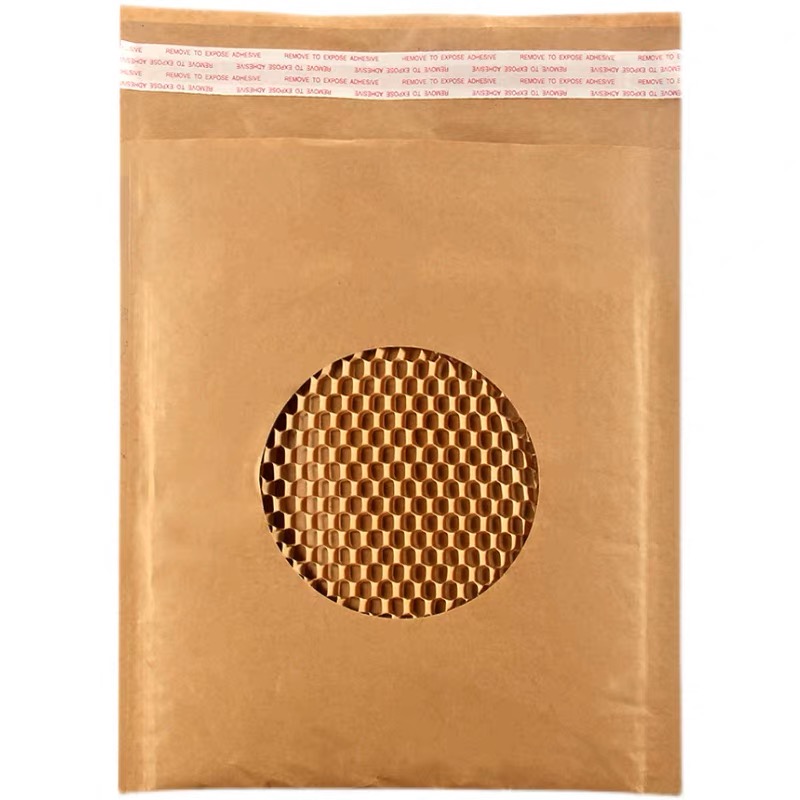

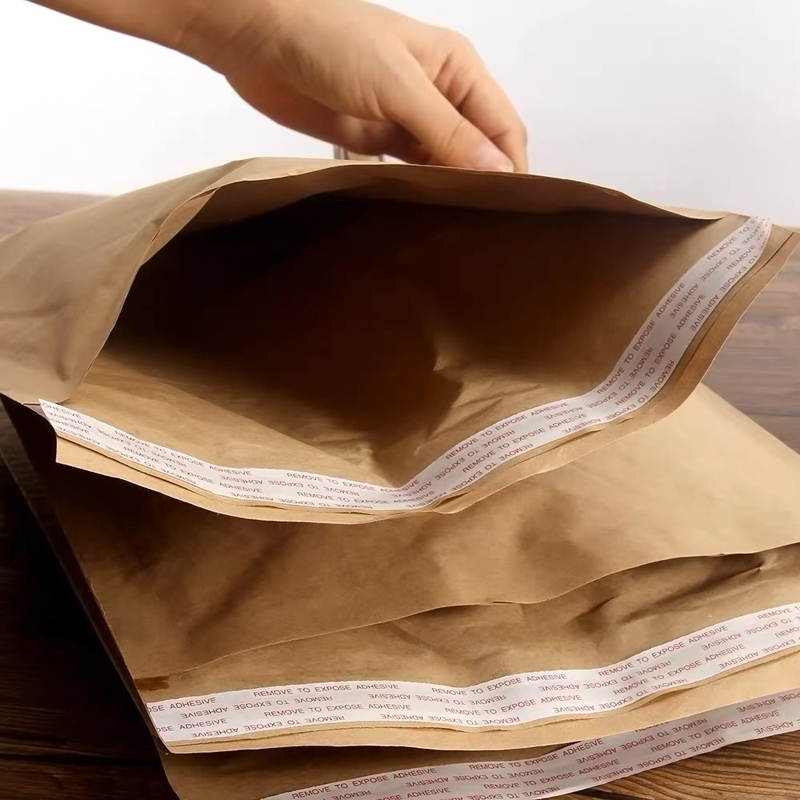

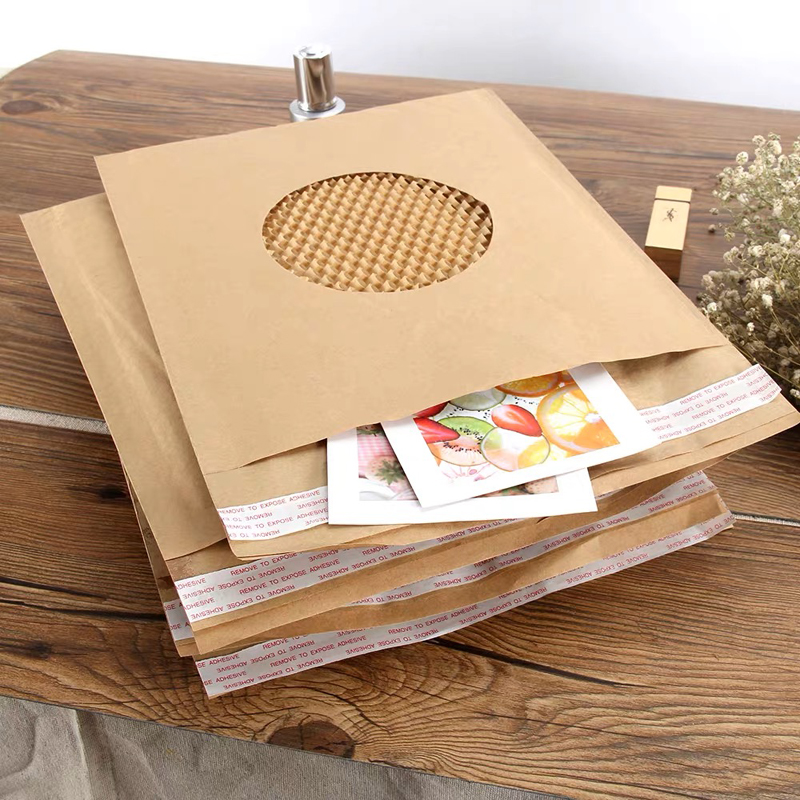

2. Bag making method: Firstly load the three layers of kraft paper on the unwinding rack , and the middle layer of Kraft paper will be pressed into bubble shape with the online bubble pressing machine and then fixed the Kraft paper and pressed bubble paper by fixed point glue spraying method, and then by second gluing, folding and cutting into a environmentally cushion bag which used in express industry.(Note: When making honeycomb paper cushion bag, the pressed bubble part will not work. Need to put three rolls of honeycomb paper to the special unwinding roll, then stretching and inserting to two layers of Kraft paper and then making bags.)

3. This machine uses multi point advanced motion controller technology. It is controlled by computer program from film unwinding to cutting. This machine is a high-quality, easy-operational and professional one to make good-looking a, durable and environment-friendly bags.

Technical Parameters

1. Suitable bags: professional designed for paper pressed bubble cushion bags.

2. Mechanical speed: 50pcs/min, 40 pcs/min if make big size bag in one line, （bag height 500mmxbag width 350mm）, 80 pcs/min if make small size bag in two lines ( bag height 300mmx bag width 200mm)

(Note: the actual speed of making bags may differ according to the size of bags)

3. Max width of bag (Height of bag):

One line: 550mm (including the envelope flap)

Double line: 300mm (including the envelope flap)

4. Maximum length of bag (width of bag):450mm

5. Maximum width of unwinding:  paper pressed bubble cushion bag: Kraft paper: 1300mmX3; honeycomb paper cushion bag: Kraft paper:1300mmx2, honeycomb paper:500mx4

6. Maximum diameter of unwinding: paper bubble cushion bag: Kraft paper 1000mm; honeycomb paper cushion bag: Kraft paper 1000mm, honeycomb paper 500mm

7. Machine weight:

8. Overall Dimension: 32X2.3X2.4m(LXWXH)

9. Power required: 65KW

10. Voltage: 380V 50Hz Three Phase Five wire

11. Steel machine body
